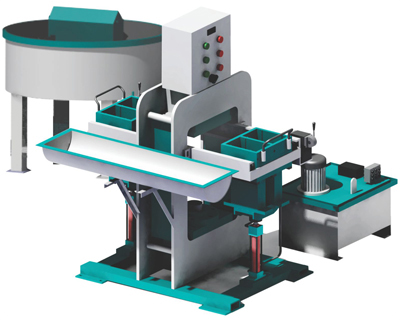

Semi Automatic Fly Ash Brick Machines

AHP Machines are the leading manufacturer of semi automatic fly ash brick making machine, our machine has features like Manually Raw material feeding, Auto mixing, Discharge of finished bricks through manually stacking. Raw materials used for the production of fly ash bricks is fly ash, sand, lime and gypsum or cement.

Bricks are produced by compressing the raw materials in the mould and hydraulically pressed. Hydraulic unit is heart of this machine and that unit consisting of Hydraulic cylinder, power pack is manufactured in house. Our machine requires manpower is 8 - 10. Fly ash bricks produced from this machine are uniform in shape and size with high compressive strength.

The excellent engineering property and durability of fly ash brick enlarges its scope for application in building construction and development of infrastructure, construction of pavements, dams, tanks, under water works, canal lining and irrigation work etc. Our service Engineer's team facilitates immediate service all over India.


TECHNICAL SPECIFICATIONS :-
Operations controlled with Lever
Heavy Duty Robust design.
Fly ash Brick size 6 Inch, size 4 Inch shall be manufactured in same machine
Moulds Interchangeability.
Brick properties meet or exceed Indian Standard for Bricks IS: 4139:1989 & 12894:1990
Maximum Compressive Strength achieved is 6 N/ Sq mm.
Semi automatic Fly ash bricks making machine.
Hydraulically operated press machine.
Production capacity of machine is 350 bricks per hour.
Heavy Duty Robust design.
Bricks are manually stacking.
The size of the Bricks can be changed by altering mould set in same machine.
This machine can also manufacture inter locking paver blocks.
Raw material preparation is done and manual feeded to the pan mixer.
Heavy duty pan mixer is designed in such a way that all the raw material is mixed in it.

FEATURES OF FLY ASH BRICKS :-
Properties of bricks meet or exceed Indian Standard of Bricks IS: 4139:1989 & 12894:1990
Maximum Compressive Strength achieved is 80-120 Kg/cm2 Curing time 6-7 Days).
Weight of fly ash bricks 2.75 - 3.25 Kg / Brick depend upon sand quality and quantity
Water absorption 12-16% depend upon recipe

RAW MATERIALS :-
Fly Ash - 50 to 55%
Stone Dust -25 to 30%
Sand - 10%
Lime & Gypsum 15 to 20% or Cement - 7%


Semi Automatic Fly Ash Brick Machines


MACHINE CAPACITY :-

SR. NO
MODEL NAME
BRICKS PER HOUR
1
AHP-350
350
